4 waves container roof panel
Linyi Aige Supply Chain Co., Ltd. provides one-stop procurement services related to container maintenance and repair. We can not only provide you with high-quality container flooring plywood, but also have high-quality suppliers who provide container related accessories. We can help you purchase together from China at a low price and ship to your country at the same time.
Keywords:
Container parts
Container repairing
Container accessories
Container Steel Panel
Container roof panel
- 产品描述
-
The standard container with a frame structure is supported by top beams and upper side beams, covering with roof panels，forming the top of the container. Each 20 foot flat container can use complete 5 pieces of roof panels, and a 40 foot high container can use 11 pieces of roof panels. The size is 2.0 * 1045 * 2356MM; Weld the roof panels together using welding techniques to form a complete roof plate. The sealed structure can provide protection, effectively resisting wind and rain, preventing water seepage, and protecting the goods inside the container.
Parameter Description Material Weathering steel (SPA-H)/Q235;
(Balancing cost and corrosion resistance)
Wave type Five-wave round head;
Four-wave round head;
Three-wave square head;
Anti-rust treatment Zinc-rich primer coating;
(Meet ASTM A123 or ISO 1461 standards)
Size and customization 2.0*1045*2356 MM
1.6*1045*2356 MM
1.3*1045*2356 MM
2.0*1045*2920 MM
1.6*1045*2920 MM
1.3*1045*2920 MM
Can be customized.
1.The standard container roof panel
- Material: Weathering steel (SPA-H)/Q235
- Process: Stamping Forming
- Size: ISO standard (thickness*width*length) 2.0 * 1045 * 2356mm
2.Five-wave round head top panel
- Anti-rust treatment: Zinc-rich primer coating
- Quantity:
- 20ft container: 5 sheets
- 40ft container: 11 sheets
3.Product size and customization
- Standard five-wave round head roof panel
- 2.0*1045*2356 MM
- 1.6*1045*2356 MM
- 1.3*1045*2356 MM
- 2.0*1045*2920 MM
- 1.6*1045*2920 MM
- 1.3*1045*2920 MM

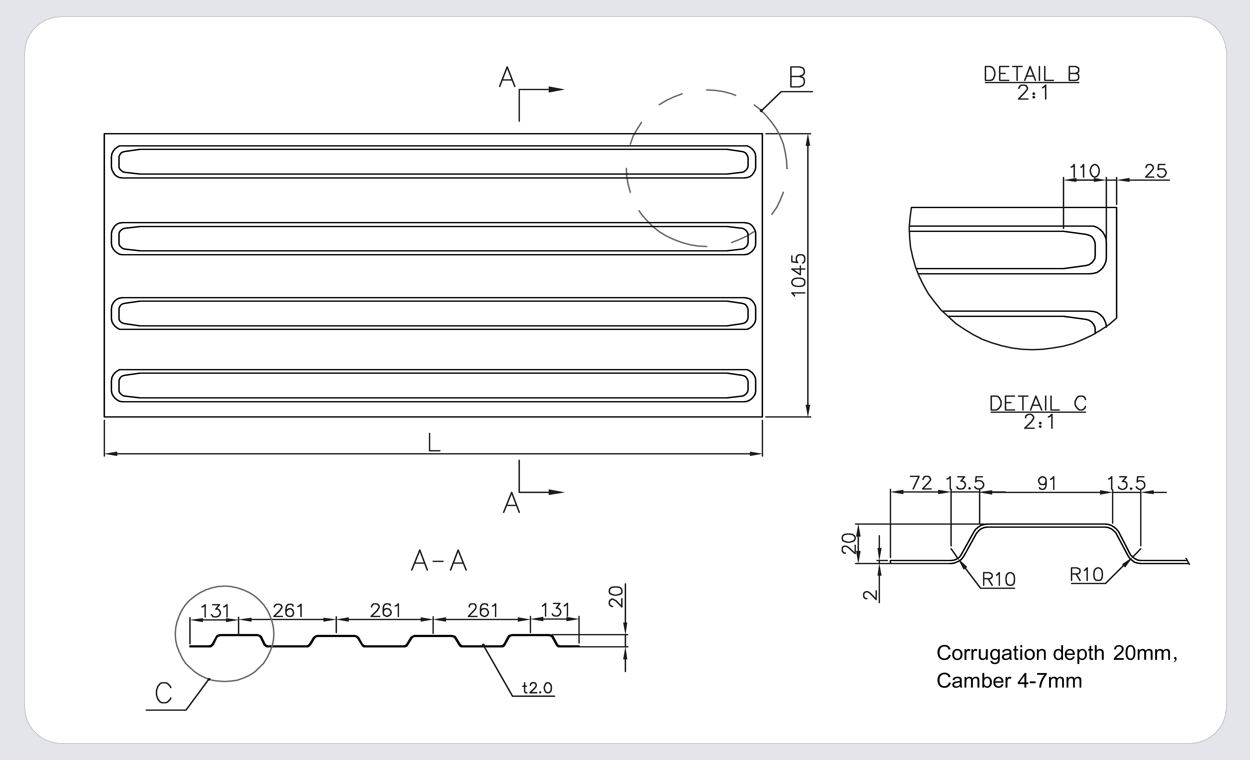

- Four-wave round head roof panel
- 2.0*1045*2356 MM
- 2.0*1045*600 MM
- Three-wave square head roof panel
- 2.0*1045*2356 MM
- 2.0*1045*600 MM
- Customization: Roof panels with various thicknesses and lengths by customers' requirements.
4.Application
Suitable for standard containers, including ordinary dry cargo container, reefer container, folding container, railway container, air freight container, and can also be used for container houses, logistics vehicles, etc.
- Material: Weathering steel (SPA-H)/Q235
Packaging for shipment
Packaging and shipping
Packaging and shipping
Packaging and shipping
Packaging and shipping
Packaging and shipping
Packaging and shipping
